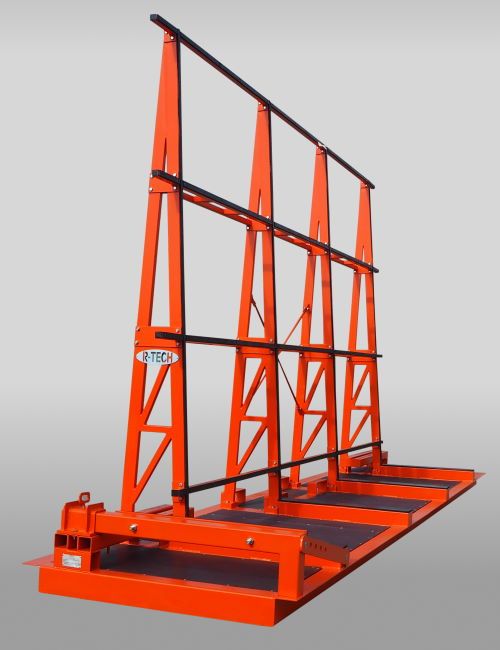

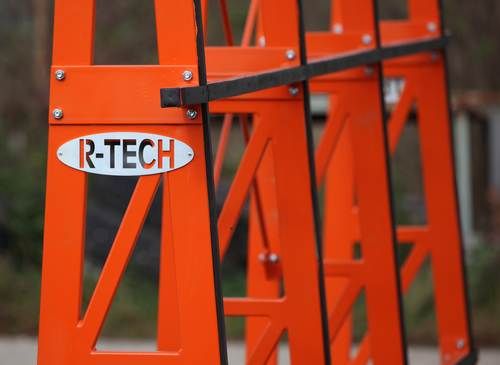

Our glas inloader palletsR-TECH Stahlbau GmbH in Willendorf am Steinfelde 2732
| Length | 8600 mm |
| Width | 1520 mm |
| Support width | 950 mm |
| Weight | 835 kg |
| Statically tested payload | 32.000 kg |
| Load security standard according to VDM 2700 |
2 variants available

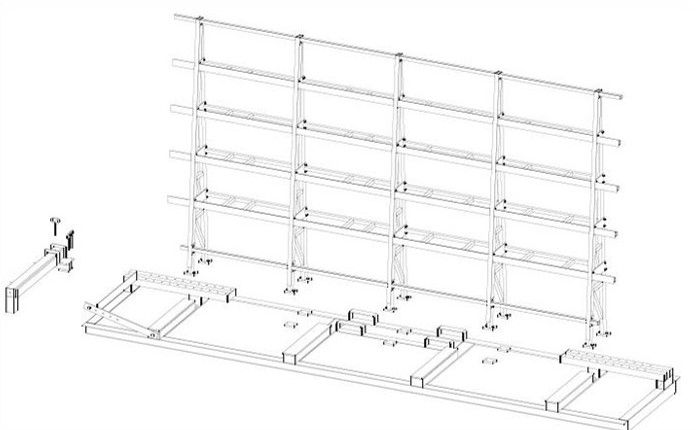

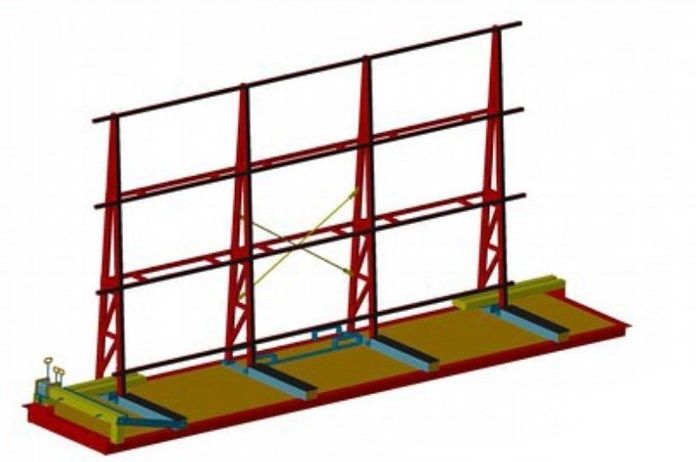

with 5 vertical posts and 6 horizontal struts
- Basic dimensions: l = 6800 mm, w = 1520 mm, h = 3245 mm
- Glass dimensions max: length 6000 mm, height 3210 mm
- Surface: primed and painted, colour in RAL according to customer requirements
Variant I
- Material: premium construction steel
- Weight: 1200 kg
Variant II – extreme light
- Material: high-strength fine-grain construction steel
- Total weight: 830 kg

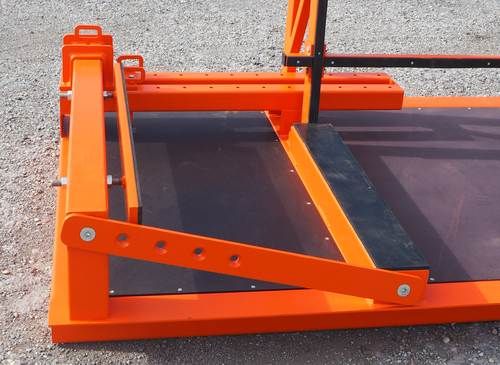

Stop protection suitable for Variant I and II

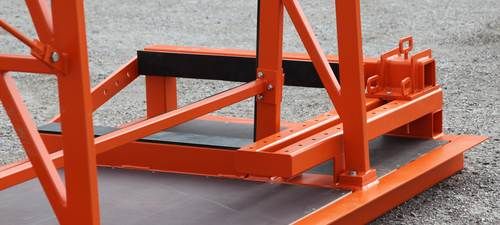

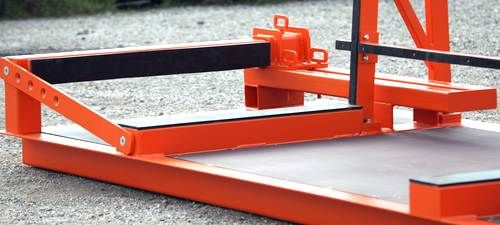

Crossbar for load securing standard VDM2700, width 1500 mm, adjustable with bolt fixing, fine adjustment via screw adjustment, stop side covered with EPDM hard rubber
